Tsun PEEM-S100 DIN Rail Mounted Smart Meter / For inverters with Serial Number (Y)

Tsun PEEM-S100 DIN Rail Mounted Smart Meter / For inverters with Serial Number (Y)
[SMTSUNPEEM-S100]

Tsun PEEM-S100 DIN Rail Mounted Smart Meter / For inverters with Serial Number (Y)
Tsun PEEM-S100 DIN Rail Mounted Smart Meter / For inverters with Serial Number (Y)Tsun PEEM-S100 DIN Rail Mounted Smart Meter / For inverters with Serial Number (Y)
Price:    114,90€
+24%VAT:   27,58€
  142,48€
In stock
Prompt Shipping

Description

The essentials in brief:

Smart Meter is a power control device for microinverter system. It can collect the current grid output power status.
At the same time, it is connected to the home network, communicates with microinverters under the same network, and controls the output power of the entire microinverter system.
Zero Export or Zero Feed-in operation capability to minimize returns to the public grid, simply by adding the Tsun Smart Meter. The Zero Export or Zero Feed-in operation is performed Locally at high speed due to the direct connection and data exchange of the Tsun Smart Meter with the Tsun Inverter. This ensures that the data transmission is very fast, almost instantaneous in fractions of a second, resulting in a significant reduction in the problem of the Inverter's delay in adapting to the consumption data that common Zero Feed-in systems usually have.

Advantages:

Local operation with real-time data monitoring on network consumption, power supply and household load even without a Wifi network.
Consumption calculation by combining grid and microinverter data.
Zero-Export / Anti-Backflow The microinverter automatically regulates so that no energy flows into the public grid.
Integrated WiFi for convenient data transfer.

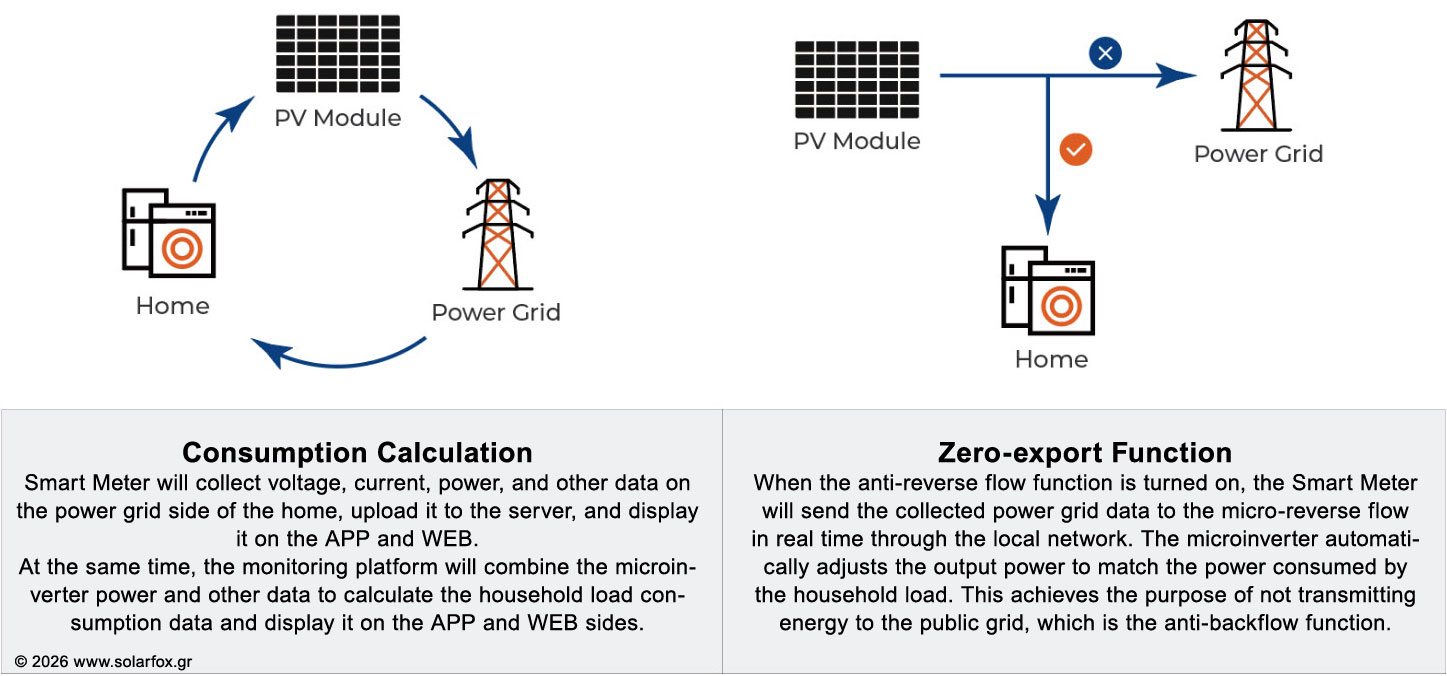

Function: Consumption Calculation & Zero Export

The smart meter collects measurement data on the grid side of the household, uploads it to the platform and visualizes it in the app and web.
If the "Anti-reverse-flow" function is activated (Zero Export), the smart meter sends the grid values ​​to the micro-inverter via the local network. which automatically adjusts its output power to household consumption – thus it zero injection reached.

Zero-export Function / anti-backflow Function / Zero Feed-in Function
Zero-export Function / anti-backflow Function / Zero Feed-in Function
Specifications / Technical Features Tsun Smart Meter
Model: PEEM-S100
Meter Type: DIN Rail Mounted Smart Meter
Communication Type: WiFi / Wireless
WIFI standard: 802.11 b/g/n μόνο 2,4 Ghz
Working Frequency: 2.412 GHz - 2.484 GHz
Data Interval with the micro inverter: < 200 ms
Data Interval with the server: 300s (5 Minutes)
Number of monitored phases: 1 (one phase)
Rated Voltage: 230 V
AC Frequency: 50 / 60 Hz
Power Range: 0 - 999999.99 kWh
Accuracy Class: 1.0
Operating temperature: −30 °C - +70 °C
Consumption: ≤ 3.5 W
